NFR30 Roller Type One Way Clutch Bearing 30mm Diameter

Brand Name : SFT

Model Number : NFR30

Place of Origin : China

MOQ : negotiable

Price : negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 50000PCS/MONTH

Delivery Time : 20-45DAYS

Packaging Details : carton,pallet

Bore Size : 8 - 130 mm

Material : Chrome steel

Outer diameter : 30 mm

Width : 48 mm

Seals Type : Non-sealed

Torque : 500 Nm

Contact Now

NFR30 One Way Bearing Factory Roller Type One Way Clutch Bearing

Product Description of NFR30 One Way Bearing

Data sheet

Item NFR 30
Type Roller
Weight 1.8 kg
Outside Diameter 90 mm
Inside Diameter 30 mm
Width 48 mm
Nominal Torque 500 Nm
Material GCr15
Precision P6
Application textile machines;printing machines;other machine

Feature

Type NFR is a bearing supported roller type freewheel without any sealing. Lubrication and sealing must be provided by the installation. Standard lubrication is oil.

Size 8 to 20 units use steel on steel bearing support from the inner race. Above size 25, two 160.. series ball bearings are used, giving a higher overrunning speed capacity. A typical arrangement is shown overleaf. The inner race is keyed to the shaft. The outer race has a positive n6 tolerance to give a press fit in a housing to H7.Additional side notches provide for positive torque transmission.The housing must be strong enough to not expand after assembly.

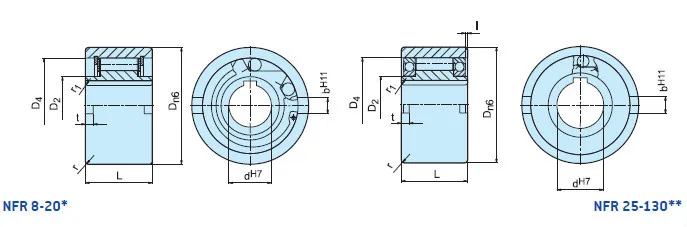

Parameter of the NFR series

NFR30 Roller Type One Way Clutch Bearing 30mm Diameter

Type Size Overrunning speeds Bearing Weight

NFR

(ANR-ANG)

dH7

(mm)

TKN1

(Nm )

Nimax2)

(min-1)

Namax3)

(min-1)

Dn6

(mm)

D2

(mm)

D4

(mm)

L

(mm)

I

(mm)

t

(mm)

bH11

(mm)

r

(mm)

r1

(mm)

(kg)
8 20 1000 1000 * 37 20 30 20 3 6 1 1.5 0.1
12 20 1000 1000 * 37 20 30 20 3 6 1 1.5 0.1
15 78 850 850 * 47 26 37 30 3.5 7 1.5 1.5 0.3
20 188 650 650 * 62 37 52 36 3.5 8 2 2 0.6
25 250 2100 3600 16008** 80 40 68 40 0.2 4 9 2.5 2 1.2
30 500 1700 3200 16009** 90 45 75 48 0.2 5 12 2..5 2 1.8
35 663 1550 3000 16010** 100 50 80 53 1.2 6 13 2.5 2.5 2.4
40 1100 1150 2600 16011** 110 55 90 63 2.2 7 15 3 2.5 3.3
45 1500 1000 2400 16012** 120 60 95 63 2.2 7 16 3 2.5 4.0
50 2375 800 2150 16014** 130 70 110 80 2.7 8.5 17 3.5 3 5.7
55 2550 750 2000 16015** 140 75 115 80 4.2 9 18 3.5 3 6.5
60 4250 650 1900 16016** 150 80 125 95 3.2 9 18 3.5 3.5 8.9
70 5875 550 1750 16018** 170 90 140 110 1.1 9 20 3.5 3.5 13.5
80 10000 500 1600 16021** 190 105 160 125 0 9 20 4 3.5 19.0
90 17250 450 1450 16024** 215 120 180 140 0.6 11.5 24 4 4 27.2
100 79625 350 1250 16028** 260 140 210 150 2.6 14.5 28 4 4 44.5
130 34750 250 1000 16032** 300 160 240 180 2 17.5 32 5 5 68.0

1) Tmax = 2 × TKN

2) Inner race overruns

3) Outer race overruns

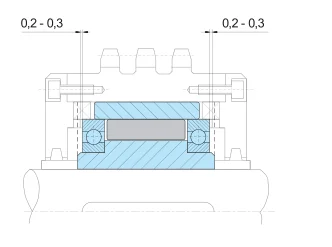

Mounting

NFR30 Roller Type One Way Clutch Bearing 30mm Diameter

NFR30 Roller Type One Way Clutch Bearing 30mm DiameterNFR30 Roller Type One Way Clutch Bearing 30mm DiameterNFR30 Roller Type One Way Clutch Bearing 30mm Diameter
