CKZ-B Sprag Freewheel One Way Clutch Bearings Backstop Overrunning For Mining Machinery

Product Categories

Shaanxi Fortune Industries Co.ltd

Contact Now

CKZ-B Sprag Freewheel One Way Clutch Bearings Backstop Overrunning For Mining Machinery

Brand Name : SFT

Model Number : CKZ-B

Place of Origin : China

MOQ : negotiable

Price : negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 50000PCS/MONTH

Delivery Time : 20-45DAYS

Packaging Details : carton,pallet

Material : Chrome steel

Width : 68-136 mm

Torque : 180000 N.m

Bore size : 14-22 mm

Application : machinery

Type : SPRAG, Other Type

Contact Now

CKZ-B Sprag Freewheel Backstop Overrunning Clutch

Product Description

Technical Datas

Item	CKZ-B
Material	GCr15
Bore dia.	25-80 mm
Outer dia.	110-300 mm
Width (B)	68-136 mm
Torque capacity	404-7500 N.m
Weight	3.98-57.17 kg
Package	Carton box, wooden box or as your requirements

Brief Introduction

Type CKZ-B is sprag type freewheels. It is self contained, sealed, bearing supported, and using two ball bearings. The unit is with lubricated oil or grease according to different requirements.

The inner race is keyed to the shaft, the outer race has positive h7 tolerance to give a press fit in housing to H7 and it is screwed to the bond.

This item is widely used in machinery of packing, traffic, metallurgy, mine and so on, used as backstop or overrunning function in dual drives.

Dimensions and Capacities

Type	Nominal Torque [N.m]	Overrunning Limited Speed [r/min]		Dimension In Contour [mm]											Weight [kg]
		Overrunning Limited Speed [r/min]		Outer Race Size							Inner Race Size
		inner race	outer race	D[h7]	D1[H7]	B	F	n-M	E	H	d[H7]	C	bn×tn	e
CKZ-B25110	404	700	300	110	80	68	95	6-M8	15	20	25	70	10×3.3	4.5	3.98
CKZ-B35130	825	560	250	130	90	85	100	6-M10	15	25	35	87	10×3.3	4.5	7.01
CKZ-B45150	1464	490	200	150	110	90	130	6-M10	20	25	45	92	14×3.8	4.5	9.69
CKZ-B50165	1830	420	150	165	120	92	145	6-M12	20	25	50	97	14×3.8	5	12.36
CKZ-B50180	2990	420	150	180	125	106	160	6-M12	20	25	50	108	16×3.8	5	16.51
CKZ-B60200	3494	350	120	200	150	115	180	6-M12	25	25	60	117	20×4.9	6	22.02
CKZ-B70240	4920	350	120	240	170	122	210	6-M14	25	30	70	124	22×5.4	6	34.65
CKZ-B75260	5760	280	100	260	200	130	230	6-M18	25	35	75	138	22×5.4	8	42.38
CKZ-B80300	7500	280	100	300	230	136	265	6-M18	25	35	80	138	22×5.4	8	57.17
CKZ-B25100	400	750	350	100	75	80	88	6-M8	10	16	25	82	8×3.3	4.5	2.62
CKZ-B28105	400	700	300	105	80	68	95	6-M8	15	16	28	70	10×3.3	4.5	2.75
CKZ-B3090	350	800	380	90	62	49	75	6-M6	10	15	30	50	8×2.0	4	4.86
CKZ-B3290	380	800	380	90	65	60	80	8-M6	10	16	32	60	10×3.7	4	4.32
CKZ-B30110	404	700	300	110	80	68	95	6-M8	15	16	30	70	10×3.3	4.5	3.91
CKZ-B32125	1021	560	250	125	95	90	110	8-M8	15	12	32	92	10×3.3	4.5	6.53
CKZ-B35115	800	700	300	115	72	78	95	6-Φ11	15		35	78	10×3.3	4.5	4.63
CKZ-B40125	800	600	300	125	95	76	110	6-M8	15	18	40	80	12×3.3	4.5	5.60
CKZ-B45190	2150	380	130	190	130	86	160	4-Φ14	20		45	86	14×3.8	6	17.5
CKZ-B55155	1735	490	200	155	125	100	140	8-M8	20	20	55	102	16×4.3	5	10.96
CKZ-B55175	1800	420	150	175	110	79	155	6-M10	20	15	55	87	16×4.3	5	14.92
CKZ-B60180	3100	420	150	180	140	124	158	8-M10	25	20	60	128	18×4.4	6	17.25
CKZ-B65180	3100	420	150	180	140	122	158	8-M10	25	20	65	124	18×4.4	6	16.68
CKZ-B80160	1830	420	150	180	130	100	145	6-M8	25	20	80	112	22×5.4	6	11.42

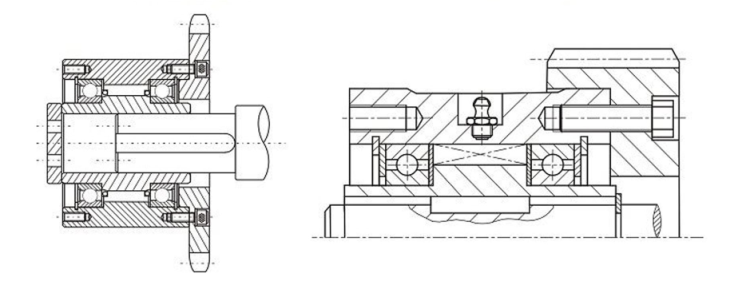

Mounting Example

Applications of one way clutch bearing:

One Way Clutches Sprag Type mainly used as Backstop clutches
Reducers,Flender Gearbox,SEW Gearbox

Overrunning clutch: for multiple-machine drives or to separate the inertia of masses of a driven machine from the driving machine after it has been switched off.

Indexing clutch: which turns a shaft step by step, thus achieving indexed material feed or a variable speed.
