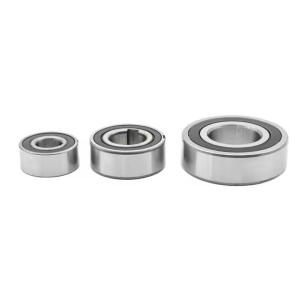

UKCC 40 ZZ GCr15 One Way Sprag Clutch Backstop Bearings

  • 1
  • 2

Brand Name : SFT

Model Number : UKCC 40 ZZ

Place of Origin : China

MOQ : negotiable

Price : negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 50000PCS/MONTH

Delivery Time : 20-45DAYS

Packaging Details : carton,pallet

Overrunning speed : 6000r/min

Torque : 85N

Applicable Industries : Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction works , Energy & Mining, Other

OD : 80mm

WEIGHT : 0.5kgs

Seals Type : sealed

ID : 40mm

Contact Now

UKCC 40 ZZ GCr15 One Way Sprag Clutch Backstop Bearings

Product Description

The Uk..zz series is a freewheel incorporating a 62..series bearing.

the self-centring freewheels are already grease-lubricated and come with dust-proof protectio

The UKC..ZZ model is equipped with a keyway on the inner race and should be fitted on k6 tolerance shafts. Seat fitting must be carried out with n6 keying tolerance.
The UKCC..ZZ model is equipped with a keyway on the inner and outer race, the tolerances are h6 for the shaft and h6 for the rigid seat.

Product name backstop bearings
Model UKCC 40 ZZ
Material GCr15
Inner diameter 40mm
Outer diameter 80mm
Thickness 22mm
Torque capacity 325Nm
Weight 0.5kg
Structure Sprag type
Application Textile machine, fans, ventilators, printing machine
Package Tube / Carton Box, Pallet
Payment terms TT. L/C, D/A,D/P,Western Union
Delivery time 2-4 days for the sample, 7 days for big order

Catalogue of backstop bearings for your choice

Tips: All the UK versions are equippede with " formchromed" sprags. This process increases several times the overrunning life time.

UKCC 40 ZZ GCr15 One Way Sprag Clutch Backstop Bearings

Type Size Bearing series Bearing loads Weight Drag torque
dynamic static
UKC...ZZ d TKN1) nmax D L b t C C0 TR
[mm] [Nm] [min-1] [mm] [mm] [mm] [mm] [kN] [kN] [kg] [Ncm]
12 6201 9.3 10000 32 10 6.1 2.77 0.04 0.7
15 6202 17 8400 35 11 7.4 3.42 0.06 0.9
17 6203 30 7350 40 12 7.9 3.8 0.07 1.1
20 6204 50 6000 47 14 9.4 4.46 0.11 1.3
25 6205 85 5200 52 15 10.7 5.46 0.14 2
30 6206 138 4200 62 16 11.7 6.45 0.21 4.4
35 6207 175 3600 72 17 12.6 7.28 0.3 5.8
40 – 325 3000 80 22 15.54 12.25 0.5 7
UKCC...ZZ 15 6202 17 8400 35 11 2 0.6 7.4 3.42 0.06 0.9
17 6203 30 7350 40 12 2 1 7.9 3.8 0.07 1.1
20 6204 50 6000 47 14 3 1.5 9.4 4.46 0.11 1.3
25 6205 85 5200 52 15 6 2 10.7 5.46 0.14 2
30 6206 138 4200 62 16 6 2 11.7 6.45 0.21 4.4
35 6207 175 3600 72 17 8 2.5 12.6 7.28 0.3 5.8
40 – 325 3000 80 22 10 3 15.54 12.25 0.5 7
45 _ 218 1600 85 19 12 2.5 18.36 15.35 0.44 9.3
50 _ 230 1500 90 20 12 2.5 19.53 17.68 0.49
UKC...2RS 12 – 9.3 10000 32 14 6.1 2.77 0.05 3
15 – 17 8400 35 16 7.4 3.42 0.07 4
17 – 30 7350 40 17 7.9 3.8 0.09 5.6
20 – 50 6000 47 19 9.4 4.46 0.145 6
25 – 85 5200 52 20 10.7 5.46 0.175 6
30 – 138 4200 62 21 11.7 6.45 0.27 7.5
35 – 175 3600 72 22 12.6 7.28 0.4 8.2
40 – 325 3000 80 27 15.54 12.25 0.6 10
