GFK20 GFK 20 FGK20 One Way Directional Bearing Sprag Type Freewheel Clutch

Product Categories

Shaanxi Fortune Industries Co.ltd

Contact Now

Brand Name : SFT

Model Number : GFK 20

Place of Origin : China

MOQ : negotiable

Price : negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 50000PCS/MONTH

Delivery Time : 20-45DAYS

Packaging Details : carton,pallet

Overrunning speed : 6000r/min

Thickness : 23mm

Applicable Industries : Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction works , Energy & Mining, Other

Rotation Speed : 5500Nm

WEIGHT : 0.5kgs

Torque Capacity : 51Nm

Contact Now

Product Description

Features of Sprag Type Clutch

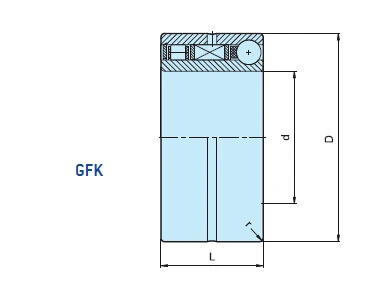

Type GF, GFK is a sprag freewheel integrated into a 59. series ball bearing.

The dedign provides high torque capacity for minimal outside diameter.

Product name	Sprag Type Clutch
Model	GFK20
Torque capacity	51Nm
Inner diameter	20mm
Outer diameter	37mm
Material	GCr15
Thickness	23mm
Weight	0.09kg
Package	Carton Box / Wooden box or customized
Payment terms	TT, L/C, D/A, D/P, Western Union
Delivery time	5-7 days after order confirmed if no stock

Installation instruction of Sprag Type Clutch

Torque transmission must be ensured by a press fits assembly into a rigid outer housing with R6 tolerance, and onto a shaft with P5 tolerance.

Catalogue of Sprag Type Clutch for your choice

GFK20 GFK 20 FGK20 One Way Directional Bearing Sprag Type Freewheel Clutch

GFK20 GFK 20 FGK20 One Way Directional Bearing Sprag Type Freewheel Clutch
