MI30S SPRAG Type One Way Clutch Bearing P0 Precision Rating for Optimal Functionality

Brand Name : SFT

Model Number : MI30S

Place of Origin : China

MOQ : negotiable

Price : negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 50000PCS/MONTH

Delivery Time : 20-45DAYS

Packaging Details : carton,pallet

Type : SPRAG

Precision Rating : P0

Seals Type : 2400

Material : GCr15

Torque (Nm) : 196

Inner Race Max. Overrunning (rpm) : 300

Thickness (mm) : 82

Weight (Kg) : 4.0

Contact Now

Technical Datas

Item	MI..S Series
Material	GCr15
Bore dia.	20-30 mm
Outer dia.	80-100 mm
Width	67-82 mm
Torque capacity	43.1-196 N.m
Weight	2.2-4.3 kg
Package	Carton box, wooden box or as your requirements

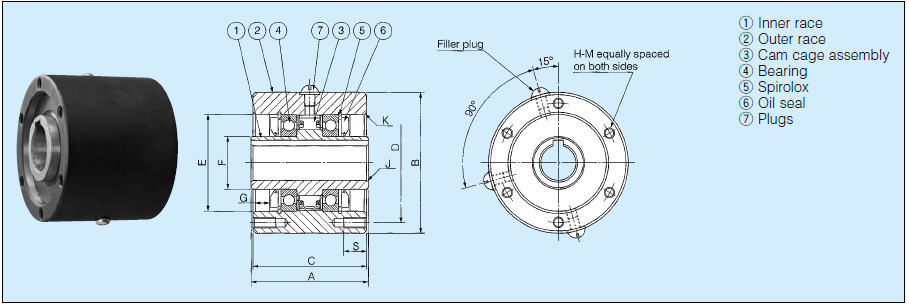

Dimensions and Capacities

MI30S SPRAG Type One Way Clutch Bearing P0 Precision Rating for Optimal Functionality

Num	Torque Capacity (N·m)	Max. Indexing (cycle/min)	Drag Torque (N·m)	Bore Size			A	C	B	F	E(M6)	G	K	PCD D	S	H-M No.of Tapped Holes × Size×Pitch	Oil (ml)	Weight (kg)
Num	Torque Capacity (N·m)	Max. Indexing (cycle/min)	Drag Torque (N·m)	Dia. (H7)	Key way	Cham- fer J	A	C	B	F	E(M6)	G	K	PCD D	S	H-M No.of Tapped Holes × Size×Pitch	Oil (ml)	Weight (kg)
MI 20S	43.1	300	0.29	20	6x2.8	1	67	65	80	30	55	8	1.0	68	13	6-M6xP1.0	45	1.9
MI 30S	196	300	1.08	30	10x3.3	1	82	80	100	45	75	5.5	1.0	88	16	6-M6xP1.25	100	4

Notes:

1. T max = 2 × T KN

2. Inner race overruns

3. Outer race overruns
Keyway to DIN 6885.1

Mounting

1. When mounting sprockets or gears to the outer race, use the outer race inner dimension (dimension E) to

make a centering flange on the sprocket or gear. Then attach firmly with bolts of tensile strength 10.9 or greater

to the tapped holes in the outer race. Recommended tolerance between mounted gear and centering flange is f7.

2. The recommended shaft tolerance is h6 or h7.

3. Always use a parallel key, and do not use a tapered key. A parallel key meeting ISO R773 (DIN 6885.1) is

recommended. Make sure that there is no lateral play between the key and keyways. Install an end plate on the

face of the inner race

4. When inserting the shaft, apply pressure only to the face of the inner race only.
