BB25 BB25-1K-K BB25-2K-K BB25-2GD Overrunning Clutch Backstop Sprag Clutch One Way Bearings Cam Clutch

Brand Name : SFT

Model Number : BB25

Place of Origin : China

MOQ : negotiable

Price : negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 50000PCS/MONTH

Delivery Time : 20-45DAYS

Packaging Details : carton,pallet

Bore Size : 20 - 37 mm

Precision Rating : P6

OD : 52 mm

ID : 25 mm

WEIGHT : 1.5 kg

Seals Type : seal

Contact Now

BB25 BB25-1K-K BB25-2K-K BB25-2GD Overrunning Backstop

Sprag Clutch One Way Bearings Cam Clutch

BB25 BB25-1K-K BB25-2K-K BB25-2GD Overrunning Clutch Backstop Sprag Clutch One Way Bearings Cam Clutch

General information of Installation and usage for BB series Cam Clutch

1. BB series Cam Clutch is designed for press fit installation.

2. BB-1K-K and BB-2GD 1K-K series have a keyway on the inner race. Keyways, except size 25 are

manufactured to DIN 6885. 3, BB40-1K-K and BB40-2GD 1K-K are manufactured to DIN 6885. 1.

3. Correct interference dimensions at the shaft and the housing must be maintained to obtain maximum bearing and clutch performance.

BB25 BB25-1K-K BB25-2K-K BB25-2GD Overrunning Clutch Backstop Sprag Clutch One Way Bearings Cam Clutch

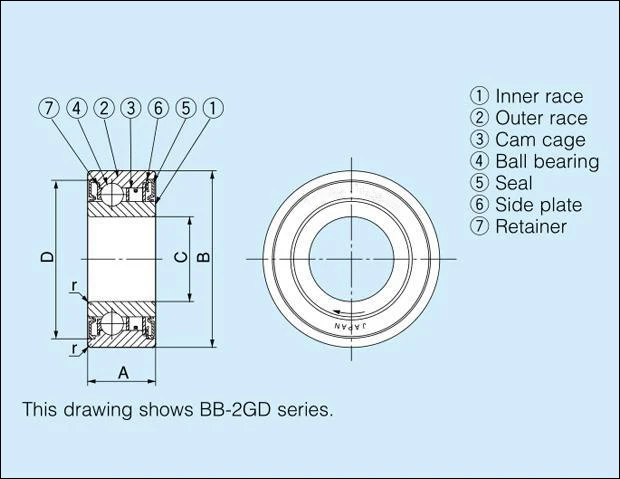

Dimensions and Capacities

Model	Torque Capacity	Max. Overrunning		Drag Torque (N·m)		A		B	C	D		r	Weight (N)		Bearing Loads
	Torque Capacity	Inner Race	Outer Race	BB BB-1K-K BB-2K-K	BB-2GD BB-2GD 1K-K	BB BB-1K-K BB-2K-K	BB-2GD BB-2GD 1K-K			BB BB-1K-K BB-2K-K	BB-2GD BB-2GD 1K-K		BB BB-1K-K BB-2K-K	BB-2GD BB-2GD 1K-K	Cr	Cor
	N·m	r/min	r/min	BB BB-1K-K BB-2K-K	BB-2GD BB-2GD 1K-K	BB BB-1K-K BB-2K-K	BB-2GD BB-2GD 1K-K			BB BB-1K-K BB-2K-K	BB-2GD BB-2GD 1K-K		BB BB-1K-K BB-2K-K	BB-2GD BB-2GD 1K-K	N	N
BB15	29	3600	2000	0.01	0.04	11	16	35	15	32.6	32.45	0.6	50	70	5950	3230
BB17	43	3500	1900	0.01	0.05	12	17	40	17	36.1	36.45	0.6	80	100	7000	3700
BB20	61	3000	1600	0.014	0.055	14	19	47	20	41.7	42.35	1	120	150	8500	4900
BB25	78	2500	1400	0.017	0.055	15	20	52	25	47.1	47.05	1	150	200	10700	6300
BB30	140	2000	1100	0.03	0.058	16	21	62	30	56.6	55.6	1	230	280	11900	7900
BB35	173	1800	1000	0.034	0.06	17	22	72	35	64	64.6	1.1	320	410	13500	9700
BB40	260	1800	900	0.04	0.08	22	27	80	40	71	71.6	1.1	400	600	14500	11700

Note: Model No. marked on the inner race is only “K” for both “1K” and “2K”. (Example: the mark “BB25-K” for both BB25-1K and BB25-2K)

Product Advantages :

Eco-Friendly Materials: Made from recyclable materials, the BB25 is environmentally friendly.
Customizable Options: Available in multiple colors and storage capacities.
Competitive Pricing: Offers premium features at an affordable price point
Conclusion:

The BB25 is a versatile and high-performance product that caters to a wide range of users. By combining detailed descriptions, visual elements, and structured data in an Excel table, you can effectively communicate its value to potential customers.
