BB40 Bearings GCr15 Material Ball Bearing Bicycle One Way Bearing

Product Categories
Shaanxi Fortune Industries Co.ltd
Contact Now

BB40 Bearings GCr15 Material Ball Bearing Bicycle One Way Bearing

  • 1
  • 2

Brand Name : SFT

Model Number : BB40

Place of Origin : China

MOQ : negotiable

Price : negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 50000PCS/MONTH

Delivery Time : 20-45DAYS

Packaging Details : carton,pallet

Bore Size : 40 - 40.001 mm

Precision Rating : P1 P6

Outside Diameter : 35 - 80 mm

Applicable Industries : Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction works , Energy & Mining

WEIGHT : P1 P6

Type : Other Type

Contact Now

BB40 Bearings GCr15 Material Ball Bearing Bicycle One Way Bearing

Product Description

Feature of bicycle one way bearing

Product Name bicycle one way bearing
Model BB 40
Material GCr15
Bore diameter 40mm
Outer diameter 80mm
Torque capacity 260Nm
Operating temperature –30°C to +100°C
Shipping detail Grease is already applied before delivery
Package Each in White Small Carton box + Carton box 29*28*19cm
Delivery time Sample 1-2 days, Big Quantity 10-15days
Payment terms TT, L/C, D/P,D/A, Western Union
Port Shanghai, Ningbo, Shenzhen or as you required

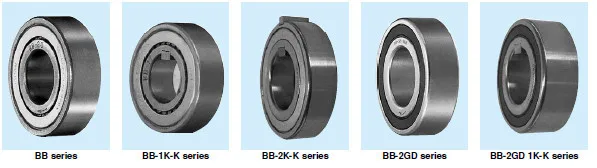

All types of bicycle one way bearing

BB40 Bearings GCr15 Material Ball Bearing Bicycle One Way Bearing

BB40 Bearings GCr15 Material Ball Bearing Bicycle One Way BearingBB40 Bearings GCr15 Material Ball Bearing Bicycle One Way Bearing

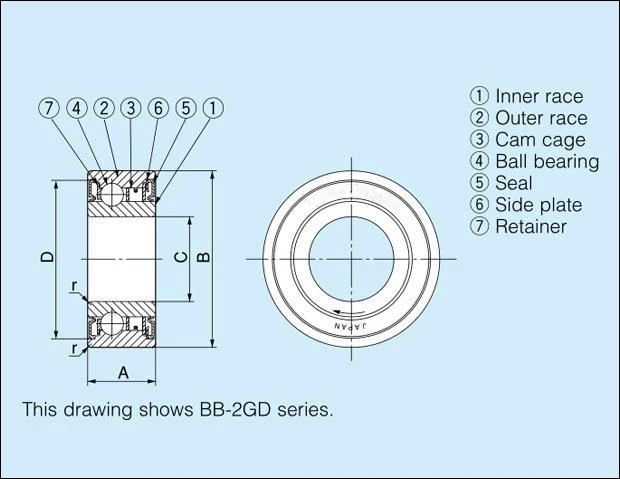

Model Torque
Capacity		 Max. Overrunning Drag Torque (N·m) A B C D r Weight (N) Bearing Loads
Inner Race Outer Race BB
BB-1K-K
BB-2K-K		 BB-2GD
BB-2GD 1K-K		 BB
BB-1K-K
BB-2K-K		 BB-2GD
BB-2GD 1K-K		 BB
BB-1K-K
BB-2K-K		 BB-2GD
BB-2GD 1K-K		 BB
BB-1K-K
BB-2K-K		 BB-2GD
BB-2GD 1K-K		 Cr Cor
N·m r/min r/min N N
BB15 29 3600 2000 0.01 0.04 11 16 35 15 32.6 32.45 0.6 50 70 5950 3230
BB17 43 3500 1900 0.01 0.05 12 17 40 17 36.1 36.45 0.6 80 100 7000 3700
BB20 61 3000 1600 0.014 0.055 14 19 47 20 41.7 42.35 1 120 150 8500 4900
BB25 78 2500 1400 0.017 0.055 15 20 52 25 47.1 47.05 1 150 200 10700 6300
BB30 140 2000 1100 0.03 0.058 16 21 62 30 56.6 55.6 1 230 280 11900 7900
BB35 173 1800 1000 0.034 0.06 17 22 72 35 64 64.6 1.1 320 410 13500 9700
BB40 260 1800 900 0.04 0.08 22 27 80 40 71 71.6 1.1 400 600 14500 11700

Note: Model No. marked on the inner race is only “K” for both “1K” and “2K”. (Example: the mark “BB25-K” for both BB25-1K and BB25-2K)

BB40 Bearings GCr15 Material Ball Bearing Bicycle One Way Bearing

BB40 Bearings GCr15 Material Ball Bearing Bicycle One Way Bearing
